CHECK_ALL_TRANSITION_CONDITIONS ​

This command checks the syntax of all transition conditions contained in a model. The model has to be specified by its modelid. If a transition condition defines or references a macro the macro definition is checked too.

Syntax ​

leo-grammar
CC "Simulation" CHECK_ALL_TRANSITION_CONDITIONS modelid:intValue

#--> RESULT ecode:intValue
			errtext:strValue
			text:strValue
CC "Simulation" CHECK_ALL_TRANSITION_CONDITIONS modelid:intValue

#--> RESULT ecode:intValue
			errtext:strValue
			text:strValue

Parameters ​

  • modelid (idValue) -

Returns ​

  • ecode (intValue) - 0 if the check was completed successfully or 1 if an error has ocurred
  • errtext (strValue) - INVALID_MODELID if the modelid given was not valid, NO_SUCCESSOR_RELATIONS_IN_MODEL if the model specified did not contain any relations of class successor or OK for no error
  • text (strValue) - contains a line in the format RelationID CheckResult\n for every transition condition.

Details ​

Possible CheckResults are
*EXPECTED_PARENTHESIS *EXPECTED_LOGICAL_OPERATOR *ILLEGAL_OPERATOR *ILLEGAL_TERM *INCOMPLETE_COMPARISON *INCOMPLETE_CONDITION *NO_ERROR *TRANS_PROBABILITY *TREE_ALREADY_EXISTS *TREE_CONSISTS_OF_TRUE *UNKNOWN_OPERATOR

In case of a macro definition the CheckResult is preceded by "MACRO_DEFINITION->"
In case of a macro reference the CheckResult is preceded by "REFERENCING_MACRO->"

See Also ​

Examples ​

asc
CC "Core" GET_MODEL_ID modelname:"GP1" modeltype:"Geschäftsprozeßmodell"
CC "Simulation" CHECK_ALL_TRANSITION_CONDITIONS modelid:(modelid)
IF (ecode = 0)
{
  CC "AdoScript" INFOBOX (text)
}
ELSE
{
  CC "AdoScript" ERRORBOX (errtext)
}
CC "Core" GET_MODEL_ID modelname:"GP1" modeltype:"Geschäftsprozeßmodell"
CC "Simulation" CHECK_ALL_TRANSITION_CONDITIONS modelid:(modelid)
IF (ecode = 0)
{
  CC "AdoScript" INFOBOX (text)
}
ELSE
{
  CC "AdoScript" ERRORBOX (errtext)
}

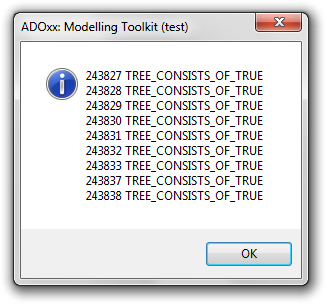

CHECK_ALL_TRANSITION_CONDITIONS

Versions and Changes ​

Available since ADOxx 1.3
