Preparation

This section contains the preparation steps for packaging your modelling tool:

• If you are starting from scratch and want to implement and/or package your tool, please go to: Preparation from Scratch
• If you already have a modelling tool, which is based on ADOxx 1.5 and want to migrate to ADOxx 1.8, please use: Preparation Migration

Preparation from Scratch

This section guides you to package and publish your modelling tool. It does not contain information on how to implement with ADOxx. For further information on the implementation please refer to the ADOxx documentation or join one of the upcoming ADOxx Crash Courses.

Access to code.omilab.org

To use the packaging procedure you need access to our GitLab repository: code.omilab.org

1. Please register at: https://code.omilab.org/users/sign_up

2. Request access to the GitLab group for the ADOxx Modelling Tool Development: https://code.omilab.org/adoxx-mod-tool-development

   • This group can be used for a first implementation and packaging of your modelling tool. Information on how to publish your tool on the OMiLAB webpage, can be found at Publish your Modelling Tool.

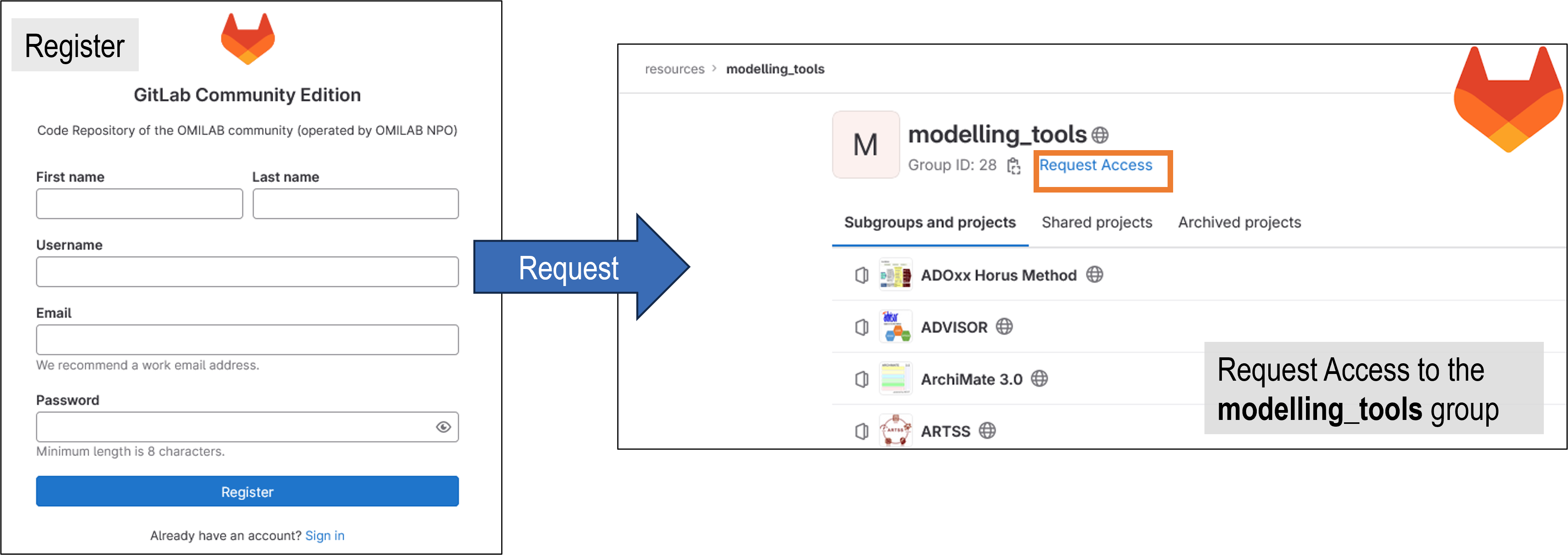

Register to code.omilab.org and request access to the ADOxx Modelling Tool Development group

3. Create your blank modelling tool project within the ADOxx Modelling Tool Development group (https://code.omilab.org/adoxx-mod-tool-development)
   1. Click New project
   2. Click Create blank project

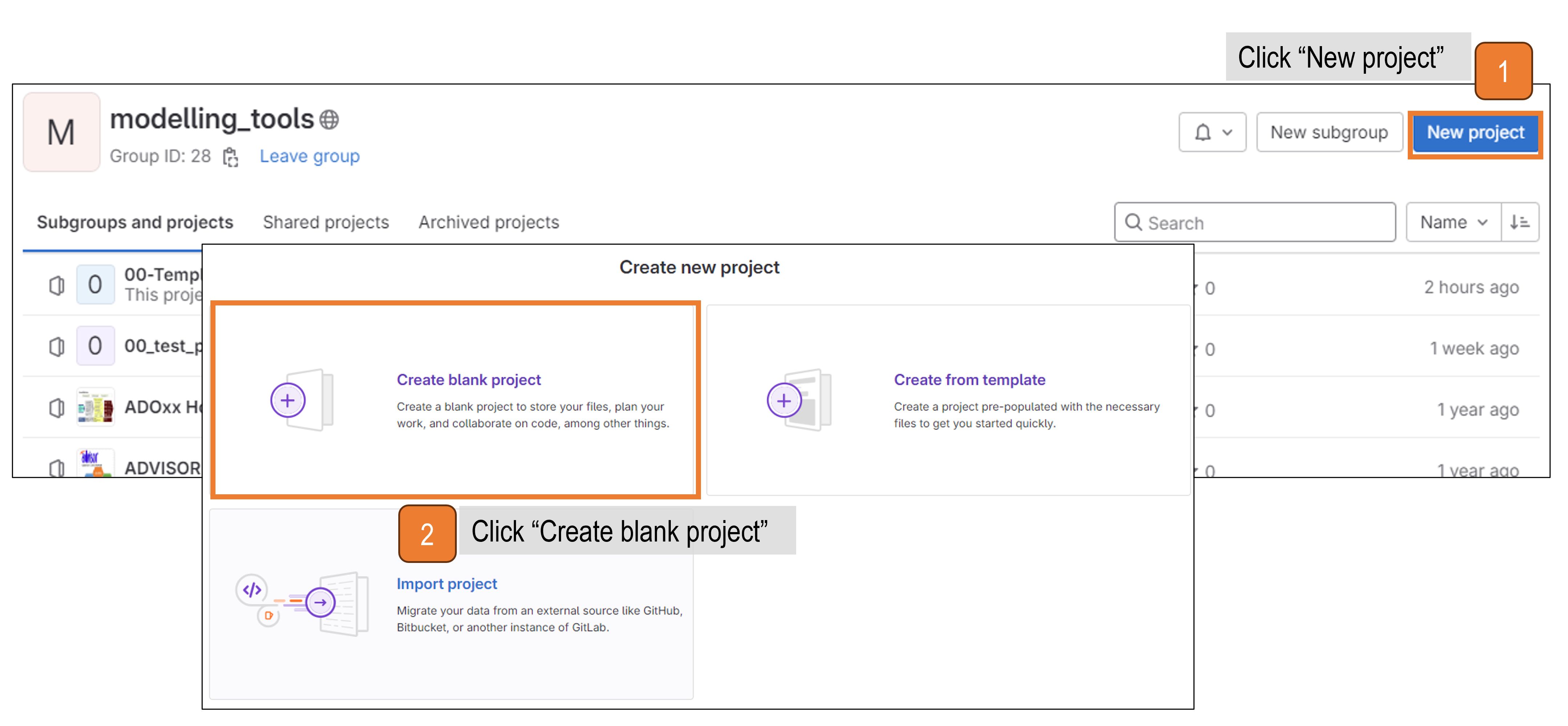

Create a blank GitLab project in the modelling_tools group

1. Enter the name of your modelling tool, as your project name
   1a.Check if the Project slug was automatically set, if not provide it
2. Set the project to public
3. Uncheck the box for Initialize repository with a README

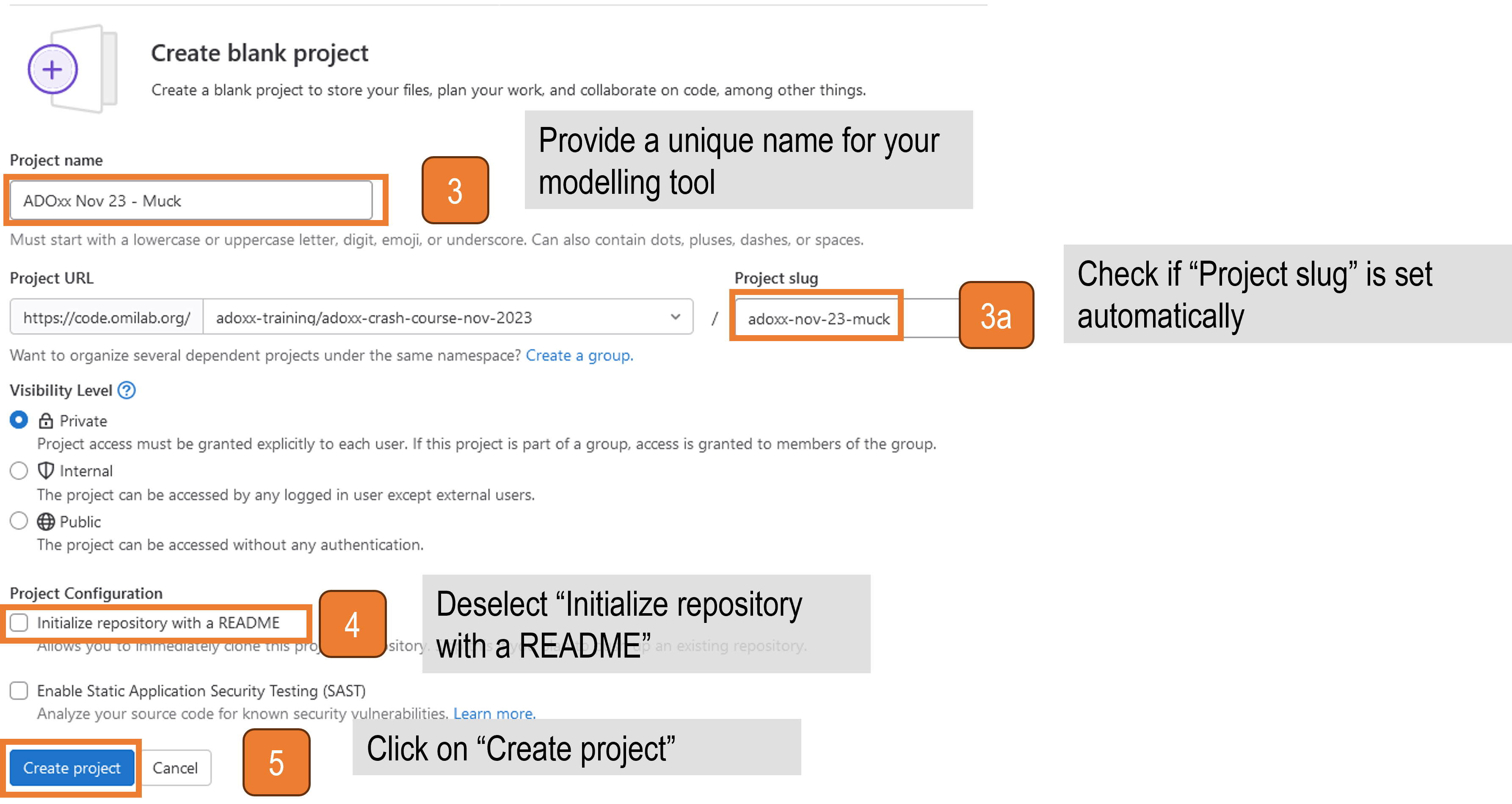

Provide the name for the new project

4. Set Up the project structure
   • Download the gitlab-ci.zip: gitlab-ci.zip and unzip the file
   • Open the GitLab repository of your newly created project in the browser
   1. Click on Upload File
   2. Upload the unzipped .gitlab-ci.yml
   3. Click Upload file

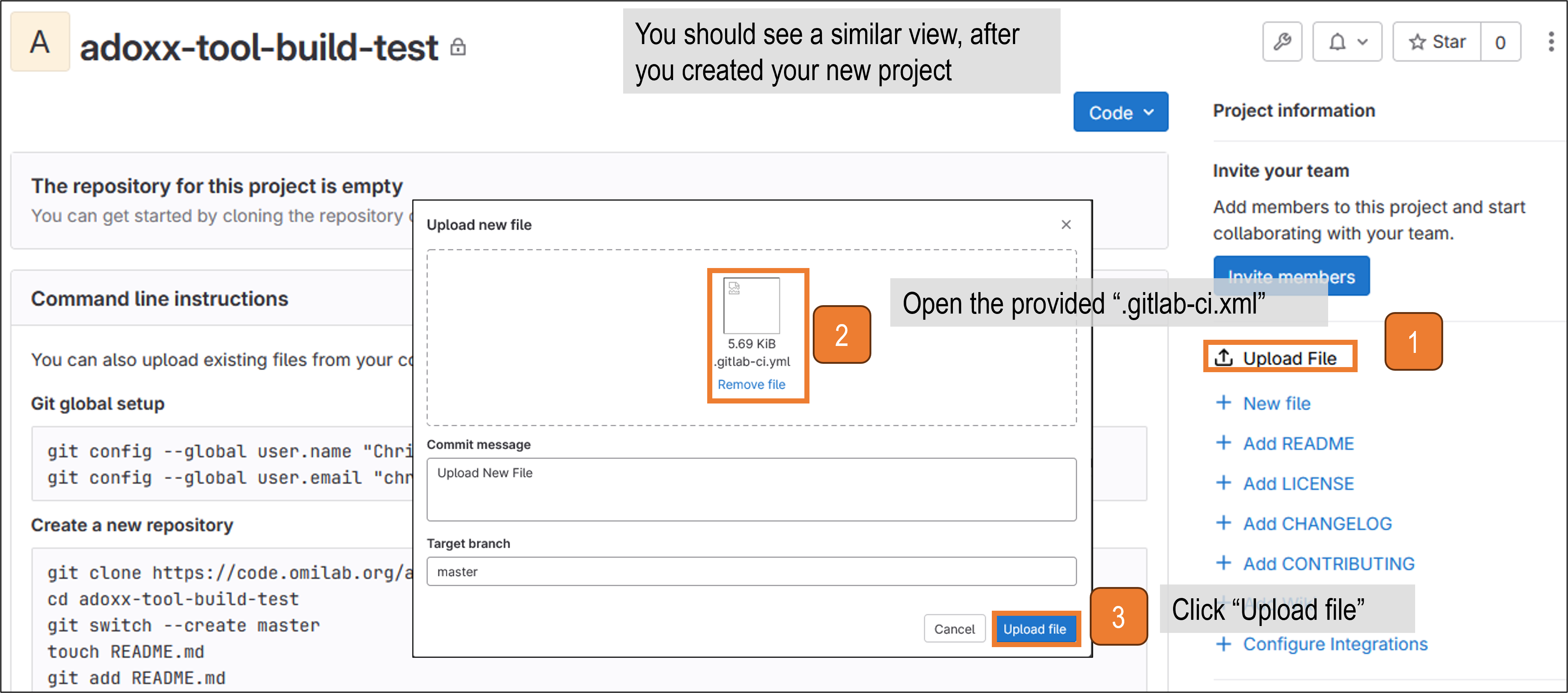

Upload the .gitlab-ci.yml file

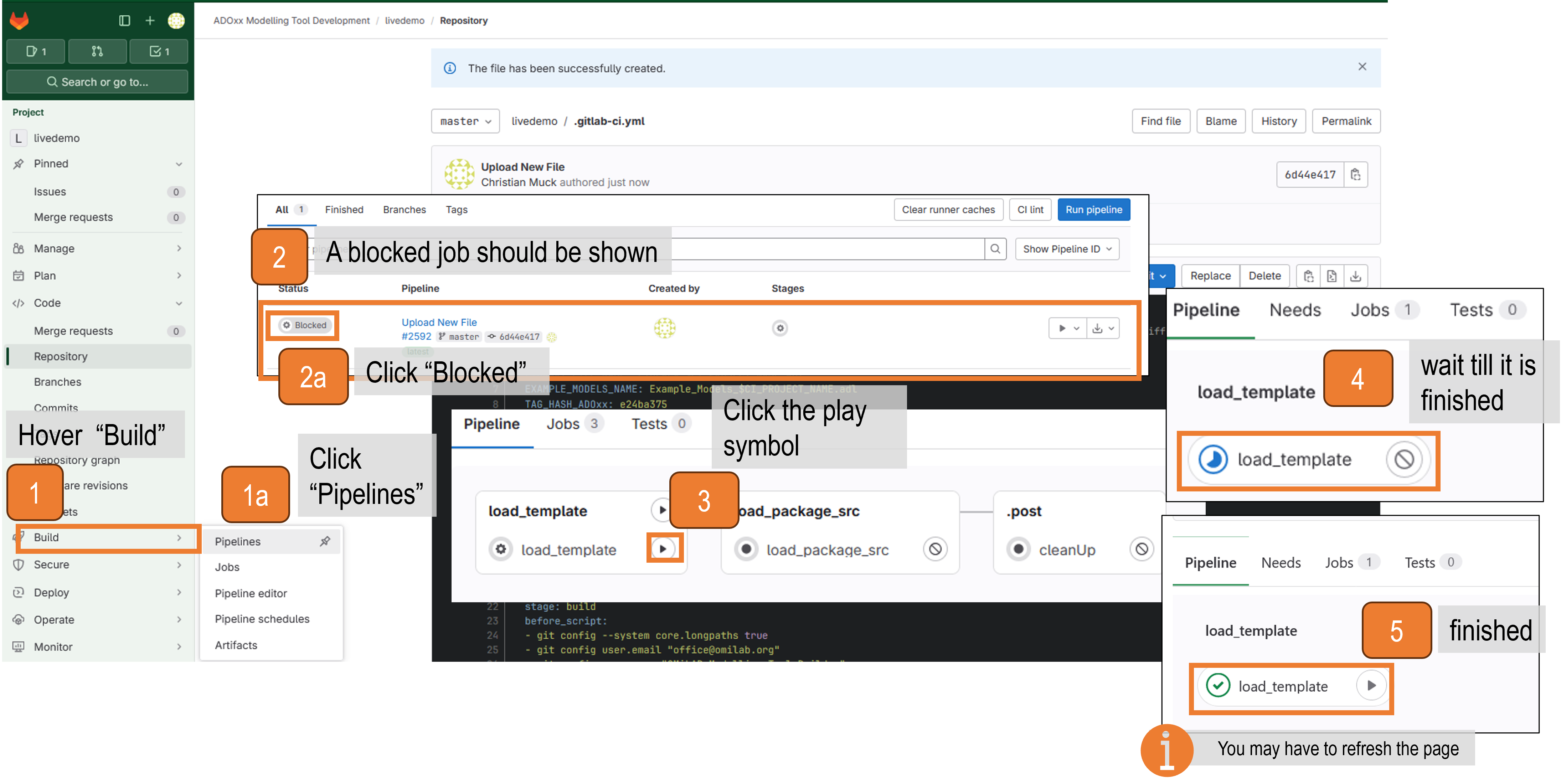

5. Create the project structure

   ^{Attention: the load_template button is only available, if (part of) the structure is not yet available!}

   1. Click Build
      1a. Click Pipeline
   2. There should be a job with status Blocked
      2a. Click on Blocked
   3. Start load_template (by clicking on the play symbol next to it)
   4. Wait till the template is loaded
   5. Check if the template was loaded correctly

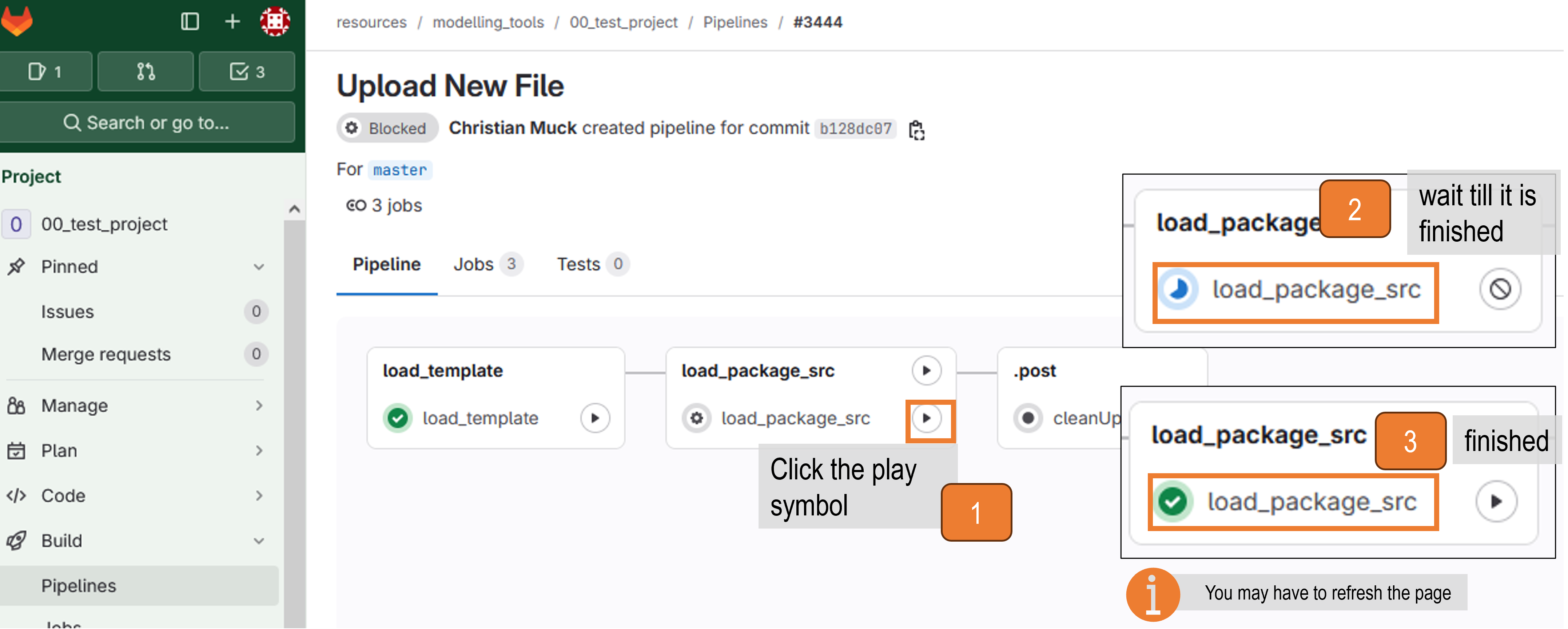

6. Load the sources for building the tool. After the template is loaded, the sources needed for packaging the tool can be loaded

   ^{Starting by the finishing interface of the previous step}

   1. Click the play symbol next to load_package_src
   2. Wait till the task is finished
   3. Check if the packaging sources were correctly loaded

Preparation Migrating from ADOxx 1.5 to ADOxx 1.8

You can import your ADOxx 1.5 library file into ADOxx 1.8, develop and use it as with ADOxx 1.5.

More information on the changes from 1.5 to 1.8 can be found in the downloaded installation folder of ADOxx 1.8:

• <SourceFolder>/doc --> for general information about the changes and the platform
• <SourceFolder>/doc/ADOxx CHANGELOG excerpt --> for overview of the changes

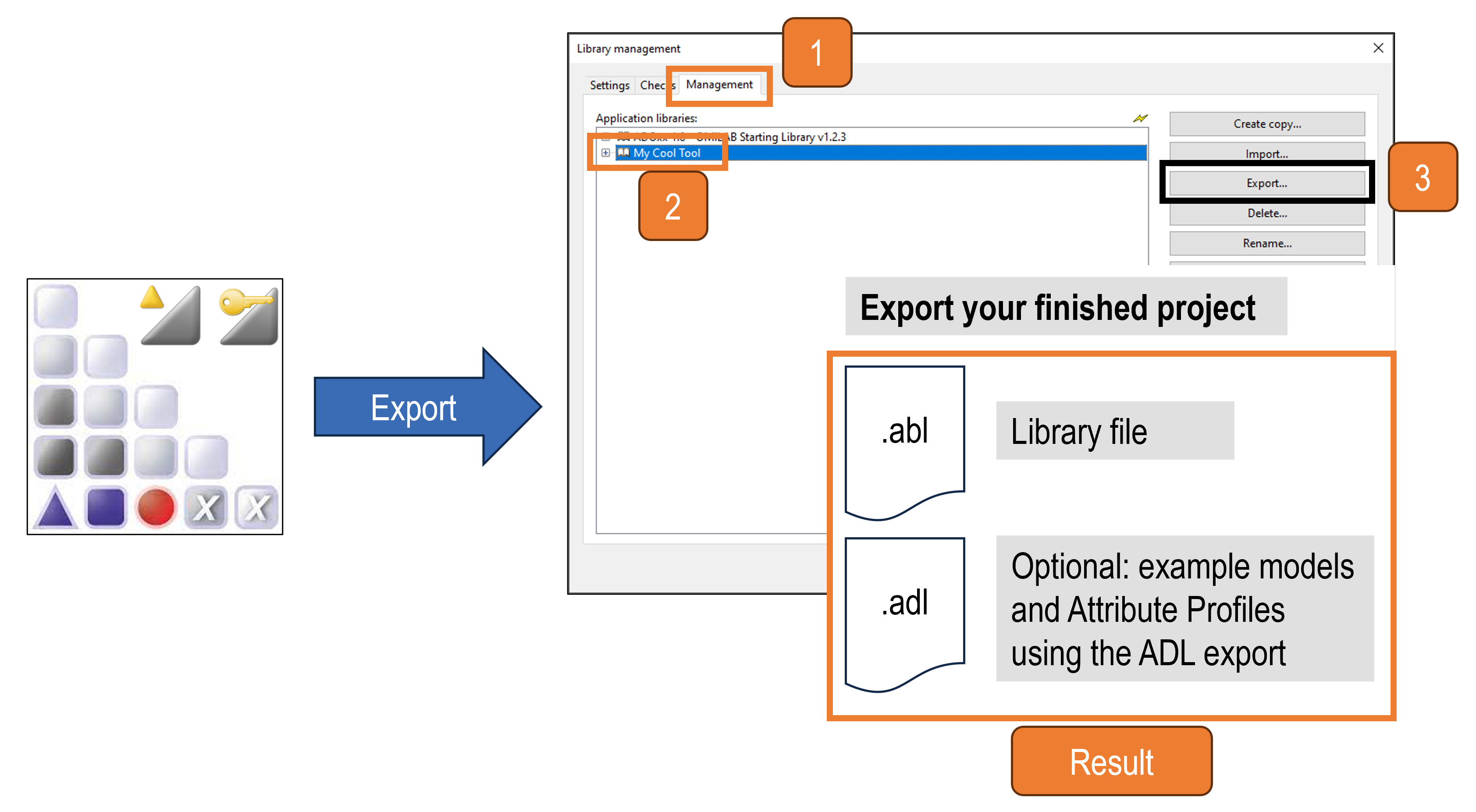

Adapt your modelling tool and all the needed functionality so that they work with ADOxx 1.8 and then export the new ADOxx library (.abl) file. If you want to provide example models with installation package of your modelling tool, please create these with ADOxx 1.8 and export them as .adl files. If there are any open questions, please do not hesitate to contact us at info@adoxx.org

1. Login into your modelling tool repository at code.omilab.org

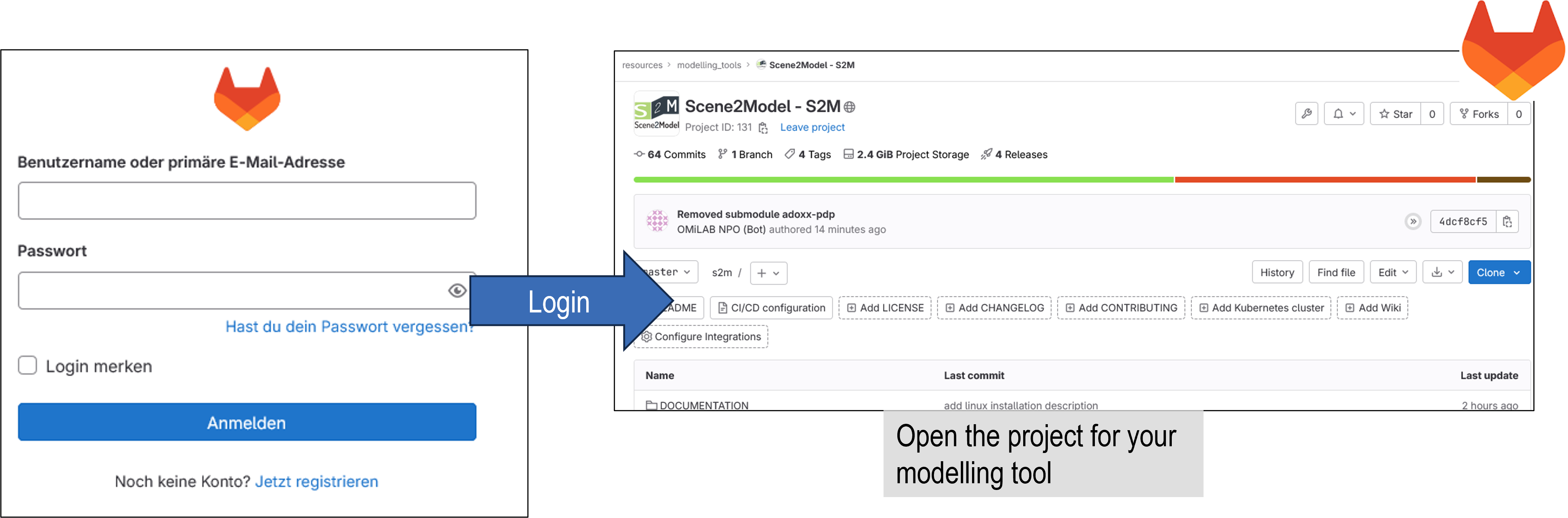

Login and open your modelling tool project page

2. Preparation for adapting the project structure
   • Download the gitlab-ci.zip: gitlab-ci.zip and unzip the file
   • Open your modelling tool project in the browser
   • Upload the .gitlab-ci.yml file to the root of your project (see figure below)

Uploading the .gitlab-ci.yml file to your modelling tool repository

3. Open the CI/CD pipeline interface
   1. Click on Build
      1a. Click on Pipelines

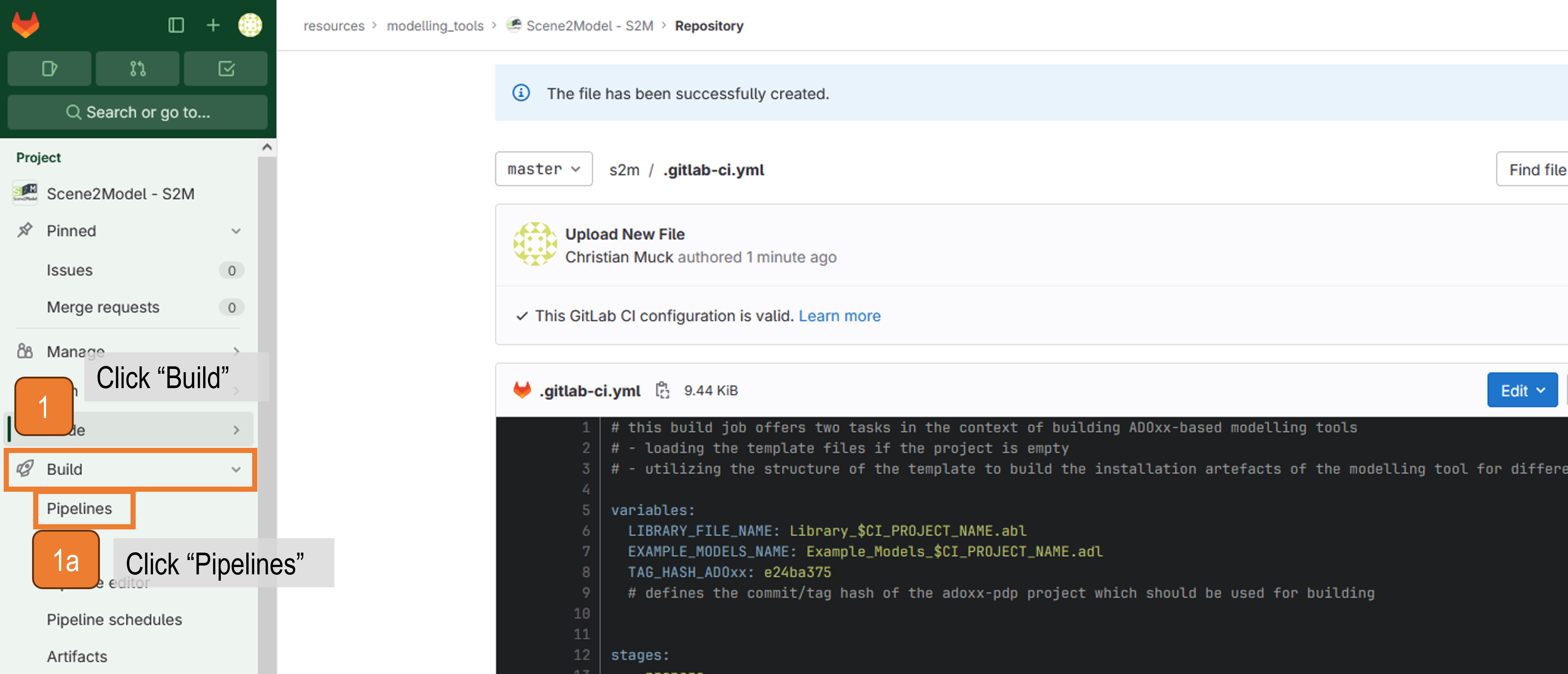

GitLab interface for opening the CI/CD pipeline interface

4. Start loading the project structure
   2. Click on the Blocked job
   3. Start the load_package_src job

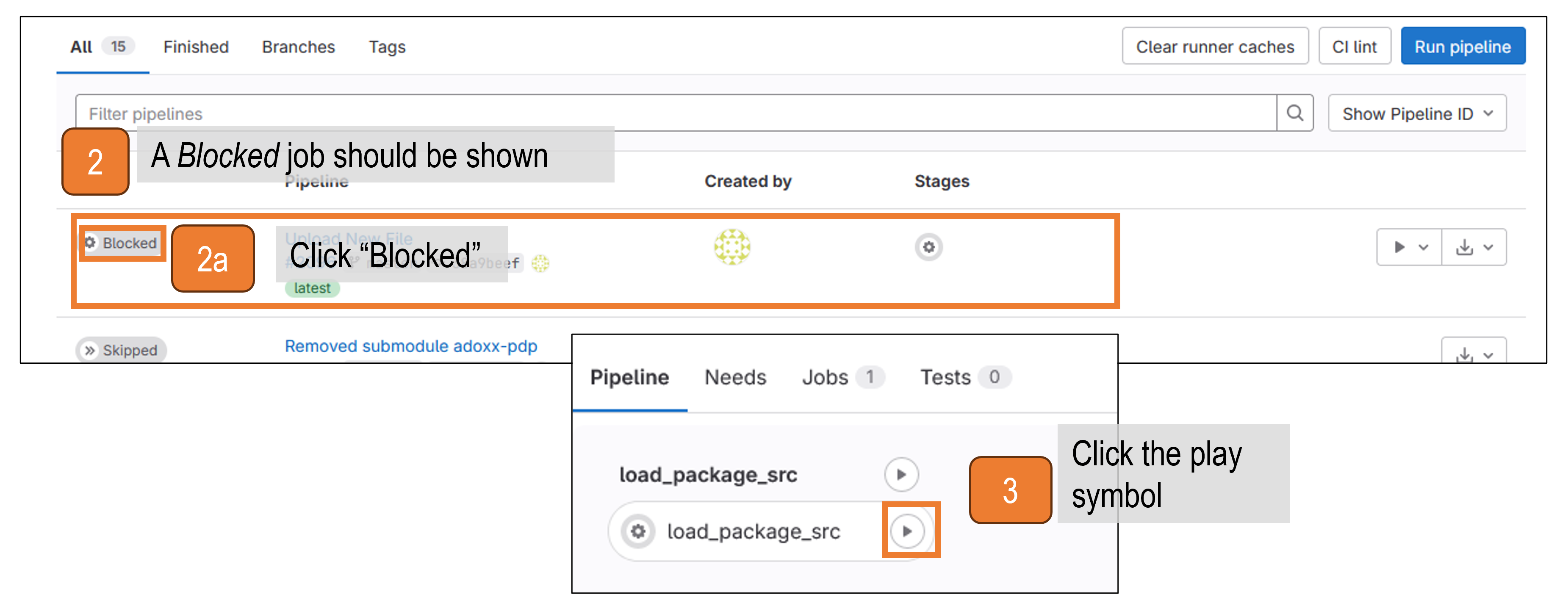

GitLab interface for starting the job to loading the project structure

5. Wait till the template is loaded

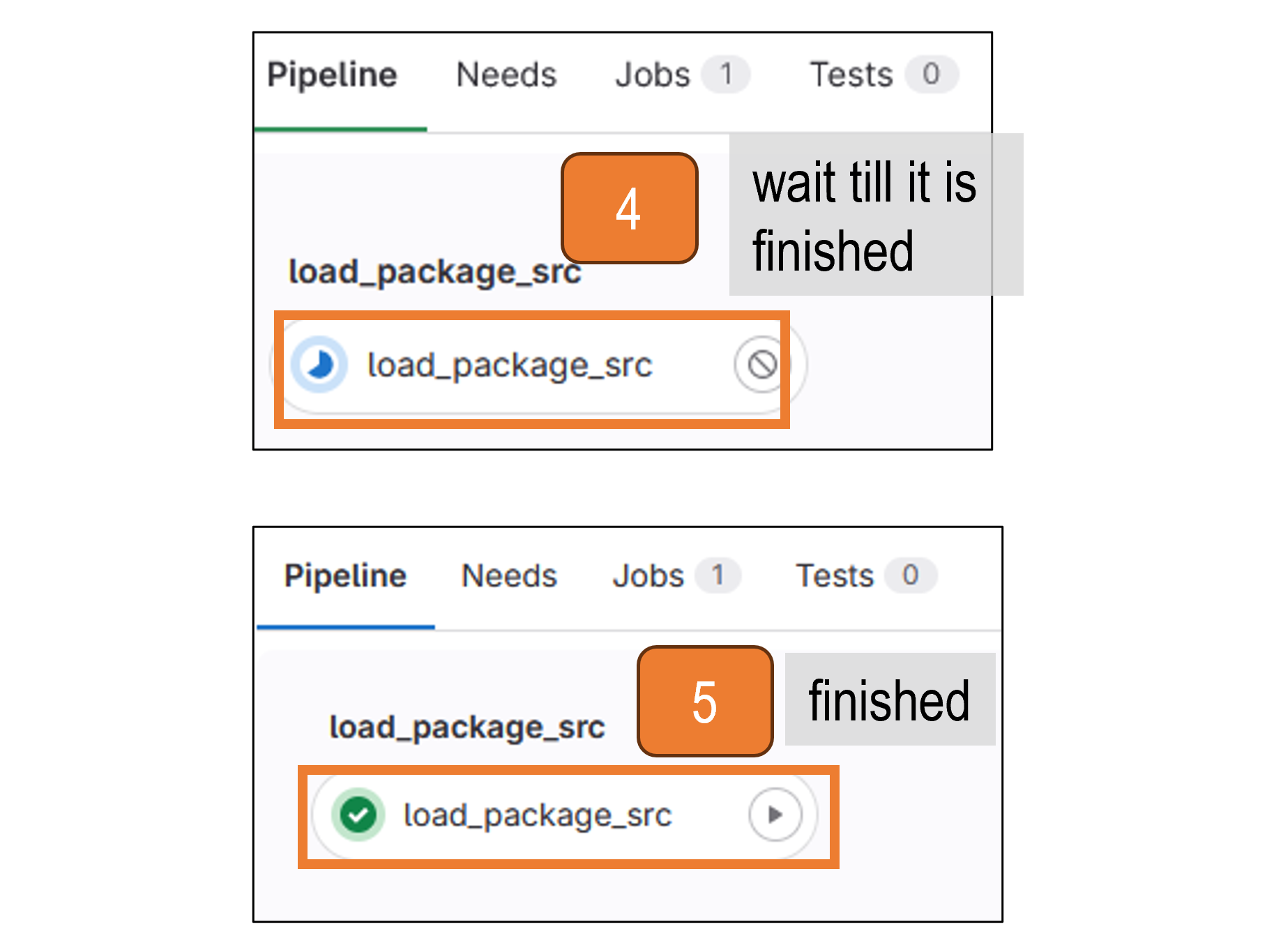

GitLab interface of the finished GitLab CI/CD job for creating the project structure
